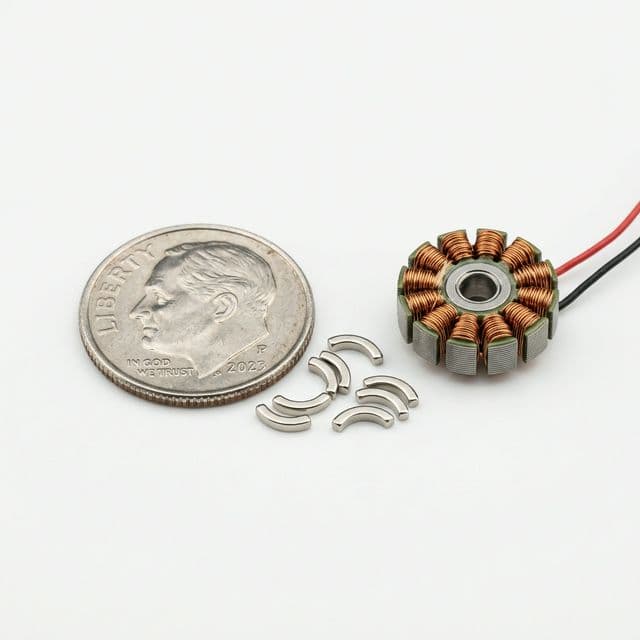

1105 brushless motor N52SH arc magnets checker and decision report
Run a fast-fit checker first, then use the evidence layer to decide whether your current N52SH arc-magnet direction is ready for prototype, needs review, or needs a fallback path.
Published April 7, 2026. Evidence updated April 7, 2026 (stage1b research-enhance round 2). Quarterly evidence review planned (next review target: July 7, 2026).
Tool-first SLA
~30 sec
Primary risk gates
3
Decision outputs
Prototype / Review / Fallback
Tool layer: 1105 N52SH arc-magnet fit checker
Enter your current geometry and operating assumptions. The tool returns a deterministic verdict with explicit boundaries and action guidance.
Input block
Defaults are set for a typical 1105-size high-RPM micro motor. Replace with your current assumptions before using the verdict.
Boundary defaults in this tool
Arc coverage target 0.78-0.90, thermal margin >=15 C, adhesive margin >3 MPa, and confidence score >=80 for prototype-ready.
Grade labels can vary by supplier. Confirm BHmax, Hcj, and max operating temperature from supplier datasheet/COA before release.
Result block
Output includes interpreted verdict, uncertainty, and next action. No raw number is shown without decision context.
Empty state
Run the checker to generate a boundary-aware verdict.
Report summary: key conclusions and audience fit
This section translates tool outputs into quick decision statements, key numbers, and fit boundaries for different use contexts.
Arc coverage target window
0.78-0.90 ratio
Most 1105-size rotor layouts avoid dead zones and assembly collision when total magnetic arc coverage stays inside this window.
N52SH thermal margin rule
>=15 C preferred
If estimated magnet peak temperature leaves less than 15 C margin to the grade limit, reliability becomes duty-cycle sensitive.
Retention screening rule
Margin > 3 MPa
Adhesive shear margin below 3 MPa typically requires groove/sleeve reinforcement for high-RPM micro-rotors.
Prototype confidence gate
Score >= 80
Below this gate, teams should shift from quick selection to validation planning before drawing freeze or RFQ release.
Procurement volatility signal
Nd oxide $56/kg -> $73/kg
USGS 2026 data shows a 2024 to 2025 neodymium oxide price jump, so procurement assumptions must include re-quote triggers.
Suitable / not suitable audience map
Use this to avoid over-applying N52SH to scenarios where boundary conditions do not justify the premium grade.
| Profile | Fit | Decision rationale |
|---|---|---|
| FPV / micro-UAV drivetrain team | Suitable | Strong torque density target with constrained rotor diameter where N52SH energy density can reduce copper-current demand. |
| High ambient + continuous duty blower motor | Conditional | Can work if thermal path and adhesive aging are validated. Otherwise SH-to-UH migration may be safer. |
| Cost-first low-speed actuator | Not ideal | N52SH premium may not return value at low RPM and moderate flux demand. N42/N48 classes can be better economics. |
| High-shock portable product | Conditional | Requires added retention design (groove/carbon sleeve/overmold) beyond adhesive-only assumptions used in fast screening. |
Secondary CTA: move from screening to action
Use this once your checker output and audience-fit view are aligned. We can convert assumptions into a quote-ready inquiry package.
Methodology and evidence
Tool logic and report conclusions share one evidence chain so the interaction layer and deep content layer remain consistent.
Evidence freshness and scope
Published April 7, 2026. Last evidence refresh: April 7, 2026 (stage1b research-enhance round 2). Quarterly evidence review planned (next review target: July 7, 2026).
Decision method flow
From inputs to recommendation in a single deterministic chain.
N52SH benchmark uses 150 C class as screening reference, not certification data.
Br temperature derating uses -0.12%/C screening slope aligned with referenced NdFeB public grade data.
Grade names (for example N52SH/G52SH) are supplier-specific labels and require datasheet/COA confirmation before release.
Adhesive-demand model is a conservative screening index, not a substitute for full rotor stress simulation.
Arc coverage and score thresholds are engineering heuristics calibrated for micro-rotor decision support.
Evidence sources and date context
Time-sensitive references are labeled with access date for traceability.
| ID | Source | Key data used | Use in page | Date context | Link |
|---|---|---|---|---|---|
| S1 | Arnold Magnetic Technologies NdFeB grade table | Public grade table lists N52 max operating temperature around 60 C and G52SH around 150 C, with Br temperature coefficient about -0.120%/C. | Used to bound grade-label interpretation and thermal derating assumptions in this page. | Supplier table accessed April 7, 2026 | Open |
| S2 | Arnold technical note on high-performance motor magnet tradeoffs | In high-performance motor design discussion, SmCo reversible coefficient is shown near -0.03%/C versus NdFeB near -0.1%/C. | Supports thermal-stability tradeoff framing versus magnetic output density. | Technical article accessed April 7, 2026 | Open |
| S3 | Henkel LOCTITE 648 technical data sheet (en-GL PDF) | Compressive shear on steel is listed at about 13.5 N/mm2 (15 min) and 31 N/mm2 (72 h at 23 C), with service temperature around -55 C to 180 C. | Justifies retention margin checks and warns against using uncured/nominal-only adhesive values. | TDS dated May 2021, accessed April 7, 2026 | Open |
| S4 | NEMA MG-1 Part 12 (polyphase motors) | Section 12.45 states motor performance is best when terminal voltage unbalance does not exceed 1%. | Used as a reliability boundary reference when moving from checker output to release decisions. | Watermark PDF accessed April 7, 2026 | Open |
| S5 | USGS MCS 2026 - Rare Earths commodity data (raw CSV) | U.S. neodymium oxide reference price moved from $56/kg (2024) to $73/kg (2025), while NdPr oxide moved from $55/kg to $69/kg. | Provides dated procurement volatility signals for BOM and sourcing decisions. | USGS 2026 dataset, accessed April 7, 2026 | Open |
| S6 | USGS MCS 2026 Fig2 net import reliance | For rare earth compounds and metals, U.S. net import reliance is listed as 67% for 2025. | Adds macro supply-risk boundary for grade and supplier decisions. | USGS 2026 dataset, accessed April 7, 2026 | Open |
| S7 | USGS MCS 2026 Fig3 major import sources | Import-source shares for rare earth compounds/metals are listed as China 71%, Malaysia 13%, Japan 5%, and Estonia 5%. | Used for supplier concentration and dual-source mitigation guidance. | USGS 2026 dataset, accessed April 7, 2026 | Open |
| S8 | USGS MCS 2026 Table T4 export controls | USGS table lists a 2025 China export licensing requirement entry that includes rare earths, with data updated through Nov 21, 2025. | Used to justify policy-trigger clauses in sourcing and fallback plans. | USGS 2026 dataset, accessed April 7, 2026 | Open |
2024 to 2025 market and policy deltas
This table converts USGS data into actionable sourcing and release boundaries for this specific page.
| Metric | 2024 | 2025 | Delta | Decision implication | Source |
|---|---|---|---|---|---|
| Neodymium oxide reference price (U.S.) | $56/kg | $73/kg | +30% | Cost-down decisions based on 2024 quotes can fail in 2025 if no re-pricing trigger is defined. | S5 |
| NdPr oxide reference price (U.S.) | $55/kg | $69/kg | +25% | Material-grade alternatives need sensitivity checks, not static premium assumptions. | S5 |
| Rare-earth compounds/metals net import reliance (U.S.) | 53% | 67% | +14 pp | Single-source plans become less resilient; procurement and engineering gates should be linked. | S6 |
| Top import-source concentration (U.S.) | China, Malaysia, Estonia, Japan | China 71%, Malaysia 13%, Japan 5%, Estonia 5% | Concentrated | Dual-source qualification is a reliability control, not only a purchasing preference. | S6, S7 |
| Policy trigger snapshot | Rare-earth item listed in USGS T4 context | China entry includes rare earths (export licensing requirement) | Control tightened | Add contract clauses for lead-time and substitution risk before pilot lock. | S8 |
Key concept boundaries and applicability
These boundaries prevent over-generalization from a single grade label or isolated catalog value.
| Decision point | Boundary | Implication | Source |
|---|---|---|---|
| Grade-name interpretation | Supplier naming is not fully uniform; some tables list G52SH and N48SH, while N52 standard grade may have much lower max operating temperature. | Do not approve by label alone. Require BHmax, Hcj, and max operating temperature in COA-level documents. | S1 |
| Thermal derating slope for NdFeB | Br temperature coefficient in the referenced grade table is about -0.120%/C for cited rows. | Thermal derating in this checker uses a conservative -0.12%/C screening slope. | S1 |
| SmCo alternative boundary | Technical note cites SmCo around -0.03%/C vs NdFeB around -0.1%/C reversible coefficient scale. | SmCo can offer better thermal stability but usually at lower magnetic energy density and higher cost. | S2 |
| Adhesive retention assumptions | LOCTITE 648 compressive shear values and service-temperature range are condition-dependent and tied to cure state/test setup. | Use safety factors and validation tests; avoid treating a catalog number as guaranteed in-rotor capacity. | S3 |
Known evidence vs pending data gaps
Evidence gaps are shown explicitly instead of being replaced by forced conclusions.
| Topic | Status | Current evidence | Minimum next step |
|---|---|---|---|
| U.S. 2024-2025 rare-earth market and sourcing concentration | Known with public data | Quantified in USGS 2026 raw CSV tables and mapped into this page. | Re-check quarterly and update procurement thresholds if trend shifts. |
| Voltage-unbalance boundary for motor reliability context | Known with standard reference | NEMA MG-1 Part 12.45 cites best performance when terminal unbalance does not exceed 1%. | Use as release-checklist context; not a substitute for application-specific validation. |
| 1105 rotor burst-speed failure distribution by grade/coating | Pending confirmation (待确认/暂无可靠公开数据) | No reliable open dataset with statistically useful sample size was found in this round. | Collect internal burst-test database or supplier qualification report before tightening the 70 m/s gate. |
| Cross-supplier Cpk distribution for micro arc-angle tolerance | Pending confirmation (待确认/暂无可靠公开数据) | Public sources do not provide comparable Cpk by grade/coating/tolerance stack for 1105-sized segments. | Require process-capability evidence in RFQ and pilot PPAP-like submissions. |
Stage1b gap-closure log
Evidence and decision-quality improvements completed during research-enhance pass.
| Gap | Fix action | Status |
|---|---|---|
| Supplier-grade naming and temperature boundaries were under-specified. | Added source-backed boundary table clarifying label ambiguity and requiring BHmax/Hcj/max-temp verification before release. | Closed in stage1b round 2 |
| Procurement and policy risk lacked dated quantitative evidence. | Added USGS 2024-2025 market delta table (price, import reliance, source concentration, export-control signal). | Closed in stage1b round 2 |
| Retention discussion did not anchor to explicit adhesive data context. | Replaced generic adhesive note with LOCTITE 648 TDS-backed values and condition caveats. | Closed in stage1b round 2 |
| No explicit disclosure for missing public micro-rotor reliability datasets. | Added known-vs-pending evidence panel with 待确认/暂无可靠公开数据 labels and concrete next-step data requirements. | Partially closed; pending public data |
Comparison, risk, and scenario decisions
This section is for tradeoff decisions, not glossary reading. Pick a path based on constraints, not magnet grade labels alone.
Risk actions below incorporate this round's dated market and policy evidence (USGS 2026 source set).
N52SH vs alternatives
Compare magnetic output, thermal behavior, implementation risk, and sourcing implications.
| Option | Magnetic output | Thermal profile | Primary risk | Sourcing/cost |
|---|---|---|---|---|
| N52SH arc segments | Highest energy class in this shortlist | High-temperature class, typically around 150 C class usage | Tighter process window and higher sensitivity to coating and retention quality at high speed. | Premium cost, longer lead-time risk in peak cycles |
| N48H arc segments | Slightly lower energy than N52SH | Often suitable up to 120 C class usage | Can underperform if torque target is near limit; may require larger magnet volume. | Better cost and wider supplier coverage |
| Sm2Co17 arc segments | Lower remanence than top NdFeB grades | Excellent high-temperature stability | Brittle material and higher machining complexity in micro sizes. | High material cost and specialized vendors |
Risk matrix
Impact-probability mapping with explicit mitigation actions.
Risk and mitigation table
Use this table as a pre-release checklist before RFQ or pilot commit.
| Risk | Probability | Impact | Mitigation path |
|---|---|---|---|
| Thermal demagnetization drift | Medium to high | High | Keep thermal margin >=15 C, validate hotspot with embedded probe, and include duty-cycle derating in RFQ package. |
| Adhesive-only retention failure at overspeed | Medium | High | Use mechanical assist (groove/sleeve), apply safety factor >=1.8, and run burst-speed qualification. |
| Arc segmentation mismatch | Medium | Medium | Control arc-angle tolerance and pole indexing; include incoming inspection with fixture-based go/no-go checks. |
| Supply lead-time spike | Medium to high | Medium | Dual-source critical grades, freeze coating specs early, and predefine policy-trigger fallback actions in sourcing contracts. |
| Policy-driven rare-earth export control changes | Medium | High | Map each grade to an alternate source/material path and trigger re-approval when export-control status changes. |
Scenario examples
Each scenario includes assumptions, process, and output so teams can reuse a complete decision template.
| Scenario | Assumptions | Process | Outcome |
|---|---|---|---|
| 22k RPM racing drone motor | OD 11 mm, 12 poles, 28 deg arc, 1.4 mm thickness, ambient 35 C, rise 60 C | Screen checker output, then verify with spin-burst retention test. | Often lands in prototype-ready when adhesive margin remains above 3 MPa and thermal margin above 20 C. |
| 24k RPM enclosed fan motor | Ambient 55 C and hotspot rise above 70 C in sealed housing | Checker flags reduced thermal margin and pushes review-required. | Teams usually add airflow or move to higher-temperature grade before release. |
| 16k RPM cost-down redesign | Torque target is moderate and temperature is controlled | Run checker baseline then compare against N48H and larger arc coverage. | Cost reduction can still work, but only if re-quoted against current rare-earth price windows and confidence stays above 75. |
Decision FAQ
Questions are grouped by decision intent so teams can move from uncertainty to next action quickly.
Tool Usage and Inputs
Material and Boundary Decisions
Procurement and Program Execution
